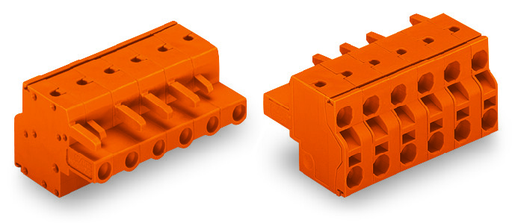

231-711/008-000

Features

• Universal connection for all conductor types
• Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP® actuation
• Integrated test ports
• With coding fingers

Approvals

• American Bureau of Shipping, ABS, 19-HG1869876-PDA
• Underwriters Laboratories Inc., UR, E45171, UL 1977
• DEKRA Certification B.V., CSA, 1466354, C22.2
• Bureau Veritas S.A., BV, 11915/D0 BV, IEC 60998
• Underwriters Laboratories Inc., UR, E45172, UL 1059

Specifications

Notes

• Safety information 1: The MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
• Variants:: Gold-plated or partially gold-plated contact surfaces || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 500 V
• Rated surge voltage (III/3): 6 kV
• Rated voltage (III/2): 630 V
• Rated surge voltage (III/2): 6 kV
• Nominal voltage (II/2): 1000 V
• Rated surge voltage (II/2): 6 kV
• Rated current: 16 A
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group B): 300 V
• Rated current UL (Use Group B): 15 A
• Rated voltage UL (Use Group D): 300 V
• Rated current UL (Use Group D): 10 A
• Rated voltage UL 1977: 600 V
• Rated current UL 1977: 15 A

Ratings Per Csa

• Approvals per: CSA
• Rated voltage CSA (Use Group B): 300 V
• Rated current CSA (Use Group B): 15 A
• Rated voltage CSA (Use Group D): 300 V
• Rated current CSA (Use Group D): 10 A

Connection 1

• Connection technology: CAGE CLAMP®

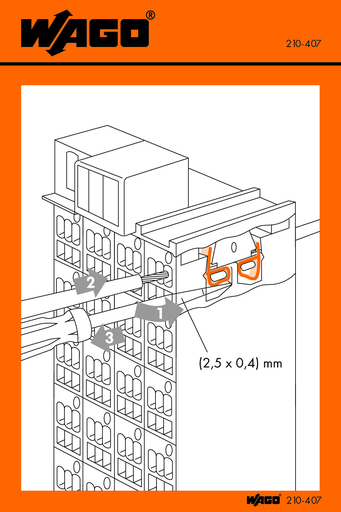

• Actuation type: Operating tool
• Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Fine-stranded conductor; with insulated ferrule: 0.25 … 1.5 mm²
• Fine-stranded conductor; with uninsulated ferrule: 0.25 … 2.5 mm²
• Strip length: 8 … 9 mm / 0.31 … 0.35 inch
• Pole No.: 11
• Conductor entry direction to mating direction: 0 °

Physical Data

• Pin spacing: 7.62 mm / 0.3 inch
• Width: 82.78 mm / 3.259 inch
• Height: 18.8 mm / 0.74 inch
• Height from the surface: 14.3 mm / 0.563 inch
• Depth: 26.45 mm / 1.041 inch

Mechanical Data

• Housing sheet thickness: 0.6 … 1.2 mm / 0.024 … 0.047 inch
• Mounting type: Snap-in foot || Panel mounting

Plug-In Connection

• Contact type (pluggable connector): Female connector/socket
• Connector (connection type): For conductor
• Mismating protection: No
• Locking of plug-in connection: Without

Material Data

• Color: Orange
• Material group: I
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Clamping spring material: Chrome nickel spring steel (CrNi)
• Contact material: Copper alloy
• Contact plating: Tin-plated
• Fire load: 0.396 MJ
• Weight: 23.450 g

Environmental Requirements

• Limit temperature range: -60 … +85 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4044918375801
• Customs tariff number Sales Organisation Germany: 85366990990
