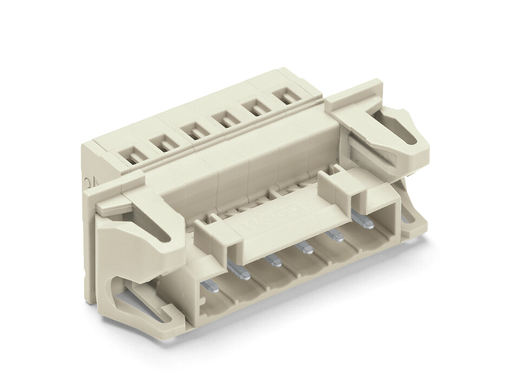

232-134

Features

• Horizontal or vertical PCB mounting via straight or angled solder pins
• For board-to-board and board-to-wire connections
• Touch-proof PCB outputs
• Easy-to-identify PCB inputs and outputs
• With coding fingers

Approvals

• Underwriters Laboratories Inc., UR, E45171, UL 1977
• American Bureau of Shipping, ABS, 19-HG15869876-PDA
• DEKRA Certification B.V., CSA, 1466354, C22.2
• Underwriters Laboratories Inc., UL, E45172, UL 1059
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE 000016Z
• Lloyds Register, LR, 96/20035 (E5), IEC 61984
• DEKRA Certification B.V., CB, NL-39756, IEC 61984
• DEKRA Certification B.V., KEMA/KEUR, 2190761.01, EN 61984

Specifications

Notes

• Safety information 1: The MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
• Variants:: Other pole numbers || 3.8 mm pin projection for male headers with straight solder pins || Gold-plated or partially gold-plated contact surfaces || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 320 V
• Rated surge voltage (III/3): 4 kV
• Rated voltage (III/2): 320 V
• Rated surge voltage (III/2): 4 kV
• Nominal voltage (II/2): 630 V
• Rated surge voltage (II/2): 4 kV
• Rated current: 12 A
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group B): 300 V
• Rated current UL (Use Group B): 15 A
• Rated voltage UL (Use Group D): 300 V
• Rated current UL (Use Group D): 10 A
• Rated voltage UL 1977: 600 V
• Rated current UL 1977: 15 A

Ratings Per Csa

• Approvals per: CSA
• Rated voltage CSA (Use Group B): 300 V
• Rated current CSA (Use Group B): 15 A
• Rated voltage CSA (Use Group D): 300 V
• Rated current CSA (Use Group D): 10 A

Connection 1

• Pole No.: 4

Physical Data

• Pin spacing: 5 mm / 0.197 inch
• Width: 21.5 mm / 0.846 inch
• Height: 23.25 mm / 0.915 inch
• Height from the surface: 18.25 mm / 0.719 inch
• Depth: 11.6 mm / 0.457 inch
• Solder pin length: 5 mm
• Solder pin dimensions: 0.6 x 1 mm
• Drilled hole diameter with tolerance: 1.3 (+0.1) mm

Plug-In Connection

• Contact type (pluggable connector): Female connector/socket
• Connector (connection type): For PCB
• Mismating protection: No
• Mating direction to the PCB: 90 °
• Locking of plug-in connection: Without

Pcb Contact

• PCB Contact: THT
• Solder pin arrangement: Over the entire female connector (in-line)
• Number of solder pins per potential: 1

Material Data

• Color: Gray
• Material group: I
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Contact material: Copper alloy
• Contact plating: Tin-plated
• Fire load: 0.067 MJ
• Weight: 3.762 g

Environmental Requirements

• Limit temperature range: -60 … +85 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4044918578301
• Customs tariff number Sales Organisation Germany: 85366990990
