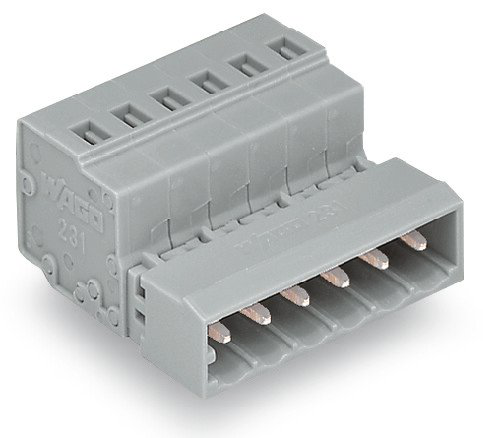

721-608/019-000

Features

• Universal connection for all conductor types
• Easy cable pre-assembly and on-unit wiring via vertical and horizontal CAGE CLAMP® actuation
• For wire-to-wire and board-to-wire connections
• Versions available with snap-in mounting feet or flanges for panel or through-panel mounting
• 3- to 5-pole male connectors are also available with preceding ground contact
• 100 % protected against mismating
• With coding fingers

Approvals

• American Bureau of Shipping, ABS, 19-HG1869876-PDA
• Underwriters Laboratories Inc., UR, E45171, UL 1977
• DEKRA Certification B.V., CSA, 1466354, C22.2
• DEKRA Certification B.V., KEMA/KEUR, 2190761.01, EN 61984
• Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE000016Z
• DEKRA Certification B.V., CB, NL-39756, IEC 61984
• Underwriters Laboratories Inc., UL, E45172, UL 1059

Specifications

Notes

• Safety information 1: The MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
• Variants:: Other pole numbers || Gold-plated or partially gold-plated contact surfaces || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 320 V
• Rated surge voltage (III/3): 4 kV
• Rated voltage (III/2): 320 V
• Rated surge voltage (III/2): 4 kV
• Nominal voltage (II/2): 630 V
• Rated surge voltage (II/2): 4 kV
• Rated current: 12 A
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group B): 300 V
• Rated current UL (Use Group B): 15 A
• Rated voltage UL (Use Group D): 300 V
• Rated current UL (Use Group D): 10 A
• Rated voltage UL 1977: 600 V
• Rated current UL 1977: 15 A

Ratings Per Csa

• Approvals per: CSA
• Rated voltage CSA (Use Group B): 300 V
• Rated current CSA (Use Group B): 15 A
• Rated voltage CSA (Use Group D): 300 V
• Rated current CSA (Use Group D): 10 A

Connection 1

• Connection technology: CAGE CLAMP®
• Actuation type: Operating tool
• Solid conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 12 AWG
• Fine-stranded conductor; with insulated ferrule: 0.25 … 1.5 mm²
• Fine-stranded conductor; with uninsulated ferrule: 0.25 … 2.5 mm²
• Strip length: 8 … 9 mm / 0.31 … 0.35 inch
• Pole No.: 8
• Conductor entry direction to mating direction: 0 °

Physical Data

• Pin spacing: 5 mm / 0.197 inch
• Width: 54.8 mm / 2.157 inch
• Height: 14.3 mm / 0.563 inch
• Depth: 27.5 mm / 1.083 inch

Mechanical Data

• Mounting type: Mounting flange || Feed-through mounting || Panel mounting

Plug-In Connection

• Contact type (pluggable connector): Male connector/plug
• Connector (connection type): For conductor
• Mismating protection: Yes
• Locking of plug-in connection: Without

Material Data

• Color: Light gray
• Material group: I
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Clamping spring material: Chrome nickel spring steel (CrNi)
• Contact material: Electrolytic copper (ECu)
• Contact plating: Tin-plated
• Fire load: 0.250 MJ
• Weight: 13.390 g

Environmental Requirements

• Limit temperature range: -60 … +100 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4044918263634
• Customs tariff number Sales Organisation Germany: 85366990990
