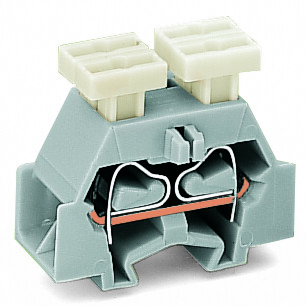

831-3202/007-000

Features

• Universal connection for all conductor types
• Push-in termination of solid or ferruled conductors
• Integrated test ports for 2 mm Ø test plugs
• 600 V UL per UL 1059
• 100 % protected against mismating
• Coding via coding fingers

Approvals

• DEKRA Certification B.V., CSA, 1466354, C22.2
• DEKRA Certification B.V., KEMA/KEUR, 71-116057, EN 61984
• Underwriters Laboratories Inc., UR, E45172, UL 1059
• DEKRA Certification B.V., CB, NL-61360/M1, IEC 61984

Specifications

Notes

• Safety information 1: The MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
• Variants:: Other pole numbers || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/

Ratings Per Iec/En

• Ratings per: IEC/EN 60664-1
• Nominal voltage (III/3): 800 V
• Rated surge voltage (III/3): 8 kV
• Rated voltage (III/2): 1000 V
• Rated surge voltage (III/2): 8 kV
• Nominal voltage (II/2): 1000 V
• Rated surge voltage (II/2): 8 kV
• Rated current: 41 A
• Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group C): 600 V
• Rated current UL (Use Group C): 42 A

Ratings Per Csa

• Approvals per: CSA
• Rated voltage CSA (Use Group C): 600 V
• Rated current CSA (Use Group C): 41 A

Connection 1

• Connection technology: Push-in CAGE CLAMP®
• Actuation type: Operating tool
• Solid conductor: 0.5 … 10 mm² / 20 … 8 AWG
• Fine-stranded conductor: 0.5 … 10 mm² / 20 … 8 AWG
• Fine-stranded conductor; with insulated ferrule: 0.5 … 6 mm²
• Fine-stranded conductor; with uninsulated ferrule: 0.5 … 6 mm²
• Strip length: 13 … 15 mm / 0.51 … 0.59 inch
• Pole No.: 2
• Conductor entry direction to mating direction: 0 °

Connection 2

• Connection technology 2: Quick-connect/solder contact

Physical Data

• Pin spacing: 7.62 mm / 0.3 inch
• Width: 17.12 mm / 0.674 inch
• Height from upper-edge of DIN-rail: 34 mm / 1.339 inch
• Depth: 46 mm / 1.811 inch

Mechanical Data

• Mounting type: DIN-35 rail

Plug-In Connection

• Contact type (pluggable connector): Male connector/plug
• Connector (connection type): For conductor
• Mismating protection: Yes
• Locking of plug-in connection: Without

Material Data

• Color: Light gray
• Material group: I
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Clamping spring material: Chrome nickel spring steel (CrNi)
• Contact material: Electrolytic copper (ECu)
• Contact plating: Tin-plated
• Fire load: 0.000 MJ
• Weight: 17.480 g

Environmental Requirements

• Limit temperature range: -60 … +105 °C

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: PL
• GTIN: 4045454333768
• Customs tariff number Sales Organisation Germany: 85366990990
