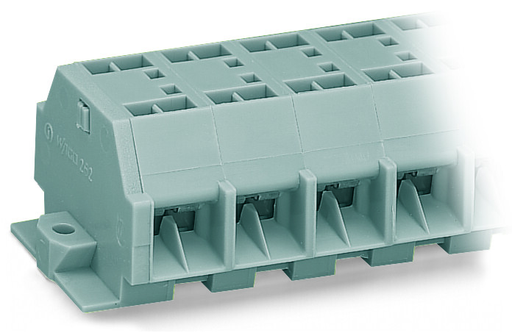

812-112

Features

Approvals

• DEKRA Certification B.V., CSA, 2131504, C22.2 No. 158
• DEKRA Certification B.V., CCA, 2160584.49, EN 60947
• Underwriters Laboratories Inc., UR, E45172, UL 1059
• DEKRA Certification B.V., CCA, NTR NL-7153, EN 60947

Specifications

Ratings Per Iec/En

• Nominal voltage (III/3): 1000 V
• Rated surge voltage (III/3): 6 kV
• Rated current: 96 A
• Note on rated current 1: Current carrying capacity: With a maximum total current of 96 A, the clamping units of the busbar terminal block can be loaded with the rated current of the conductor cross-sections approved. This only applies when (10 x 3) mm busbars are used.
• Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3

Connection 1

• Connection technology: CAGE CLAMP®
• Actuation type: Operating tool
• Connectable conductor materials: Copper
• Solid conductor: 1.5 … 16 mm² / 14 … 6 AWG
• Fine-stranded conductor: 1.5 … 16 mm² / 14 … 6 AWG
• Strip length: 12 mm / 0.47 inch
• Pole No.: 3
• Wiring direction: Front-entry wiring

Physical Data

• Width: 38 mm / 1.496 inch
• Height: 42.5 mm / 1.673 inch
• Depth: 43.5 mm / 1.713 inch

Material Data

• Color: Dark gray
• Insulation material: Polyamide (PA66)
• Fire load: 0.854 MJ
• Weight: 41.920 g

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: PL
• GTIN: 4045454014902
• Customs tariff number Sales Organisation Germany: 85369010000
