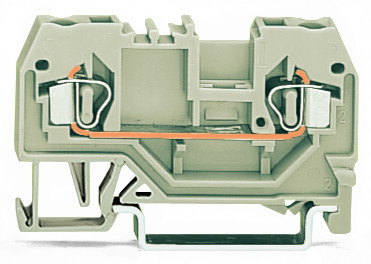

2001-1321/1000-434

Specifications

Notes

• Safety information 1: Notice: This LED terminal block cannot be commoned with push-in type jumper bars.

Ratings Per Iec/En

• Ratings per: IEC/EN 60947-7-1
• Rated current: 0.025 A

Ratings Per Ul

• Approvals per: UL 1059
• Rated voltage UL (Use Group B): 600 V
• Rated current UL (Use Group B): 15 A
• Rated voltage UL (Use Group C): 600 V
• Rated current UL (Use Group C): 15 A

Connection 1

• Connection technology: Push-in CAGE CLAMP®
• Actuation type: Push-in || Operating tool
• Connectable conductor materials: Copper
• Nominal cross-section: 1.5 mm²
• Solid conductor: 0.25 … 2.5 mm² / 22 … 14 AWG
• Solid conductor; push-in termination: 0.75 … 2.5 mm² / 18 … 14 AWG
• Fine-stranded conductor: 0.25 … 2.5 mm² / 22 … 14 AWG
• Fine-stranded conductor; with insulated ferrule: 0.25 … 1.5 mm² / 22 … 16 AWG
• Fine-stranded conductor; with ferrule; push-in termination: 0.75 … 1.5 mm² / 18 … 16 AWG
• Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
• Strip length: 9 … 11 mm / 0.35 … 0.43 inch
• Wiring direction: Front-entry wiring

Physical Data

• Width: 4.2 mm / 0.165 inch
• Height: 59.2 mm / 2.33 inch
• Depth from upper edge of DIN-rail: 32.9 mm / 1.295 inch

Mechanical Data

• Design: Horizontal type
• Mounting type: DIN-35 rail
• Marking level: Center/side marking

Material Data

• Color: Gray
• Insulation material: Polyamide (PA66)
• Flammability class per UL94: V0
• Fire load: 0.009 MJ
• Weight: 5.200 g

Commercial Data

• Packaging type: Box
• Country of origin Sales Organisation Germany: DE
• GTIN: 4045454537586
• Customs tariff number Sales Organisation Germany: 85369010000
